10kg/M3-60kg/M3 Box Foaming Machine Batch Foam Machine Round / Square Foam Block Machine

Brand Name : Hongxingwang

Model Number : HXW-XP-15

Certification : CE

Place of Origin : China

MOQ : 1set

Payment Terms : T/T

Supply Ability : 30-50 sets per year

Delivery Time : 40-50 working days

Packaging Details : 1*40HC

Voltage : 220V/380V

Power : 10kW-100kW

Application : Foam industry

Power Source : Electric

Features : High Efficiency, Stable Performance, Easy Operation

Frequency : 50Hz/60Hz

Contact Now

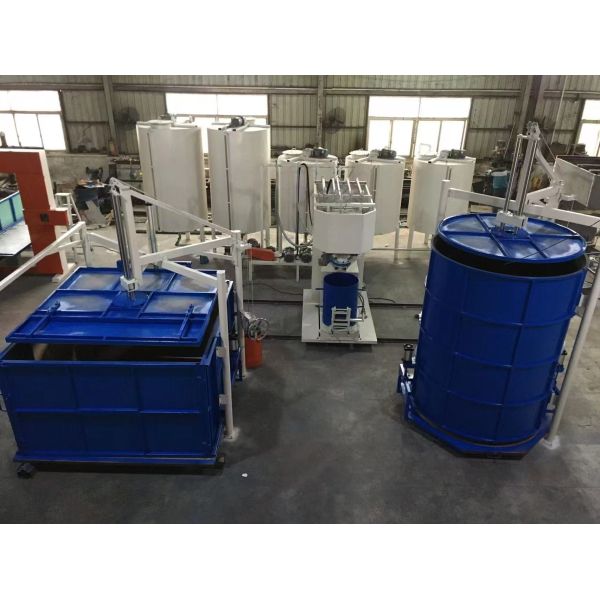

Box Foaming Machine for making both of Round Foam block and Square foam block Foaming Box System

This is the "mold" where the chemical reaction occurs and the sponge block is formed.

· Box: A large rectangular metal box, typically made of steel or stainless steel. It has a hinged bottom that allows it to be tilted for easy removal of the sponge.
· Liner Bag (Film): This is a key component of box-type foaming. Before each production run, a soft plastic film (such as polyethylene film) is placed inside the box. It serves the following purposes:
· Anti-sticking: Prevents the sponge from sticking to the metal box during the foaming process.
· Ease of Demolding: After production is complete, the large sponge block can be easily removed from the box by pulling the film.
· Keeping the box clean.
· Box Lid: The foaming box typically has a lid that closes after the raw materials are injected. It provides insulation, dust protection, and helps maintain the shape of the top (although the top of the box-type foaming machine is a free-foaming surface and therefore uneven).

Box Foaming Machine for making both of Round Foam block and Square foam block Technical Data

Application

Soft foam, HR foam, Memory foam

Foam density

10kg/m3-60kg/m3

PPG, POP and TDI Tank

2tons

Mixing head motor power

15kw

Total power

48kw

Cooling capacity

5HP

Mixing tank capacity

230L

Square Mould size

2050*1550*1250mm

Round mould size

Diameter:1500mm and height: 2100mm

Production capacity

5-6 foam blocks/h
